1700mm Auto Parts Mould Heavy Duty Double Wall Roof For Harvester Truck
Product Details:
| Place of Origin: | TAICANG |
| Brand Name: | AK |
| Certification: | ISO9001:2015 |
| Model Number: | AK |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiate US DOLLARS |
| Packaging Details: | Export wooden box |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Size: | 1700 MM | Material: | LLDPE |
|---|---|---|---|
| Structure: | Double Wall | Product: | Auto Parts |
| Design Software: | UG | Mould Material: | Aluminum |
| Surface Treatment: | Texture | Color: | White |
| Mould Cavity: | Single Cavity/Multi Cavity | ||
| Highlight: | 1700mm Auto Parts Mould,Harvester truck roof rack,LLDPE Auto Parts Mould |
||
Product Description

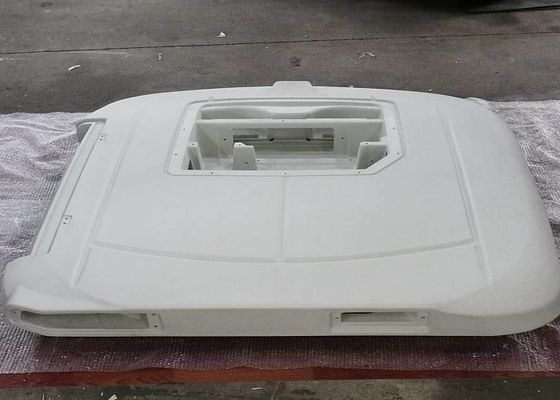

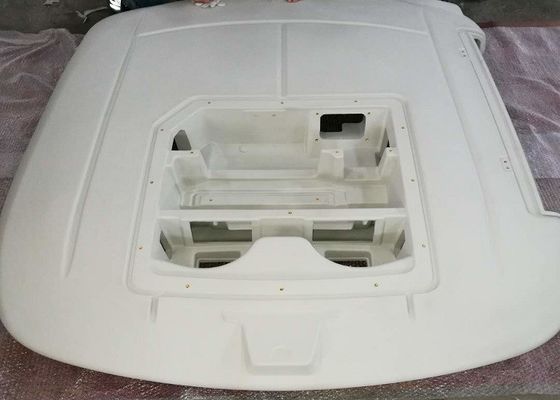

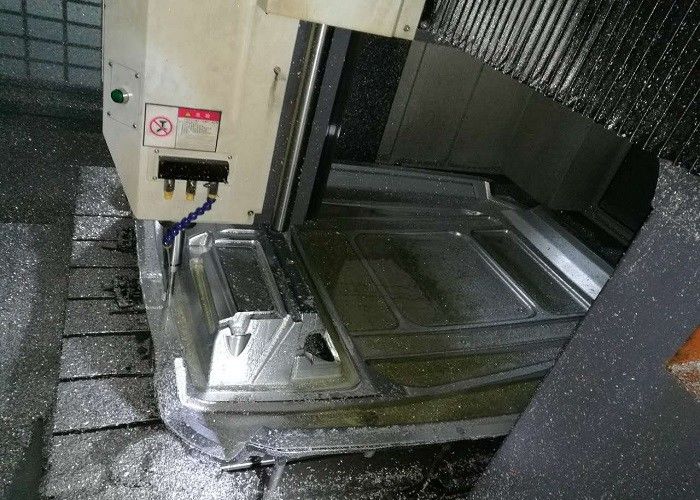

1700 MM Double Wall Roof For Harvester Truck Created From Aluminum Rotomolding Tool
Genernal tools specifications:
1-Foam tooling model as casting patterns.
2-Aluminum 5/16” wall castings.
3-No or minimal porosity, guaranteed not to blow holes.
4-2” wide x 9/16” parting lines.
5-Tongue and groove parting lines.
6-Tongue is on the side that will mount to arm.
(So plastic powder isn’t spilled into groove)
7-Two options for texture, 0.8mm/1.5mm shoot blasted. Mat.
8-Fabricated frame, minimum (1-1/2” x 1-1/2” mild steel tubing)
9-Heavy duty Clamps.
10- Mild steel lifting hooks.
