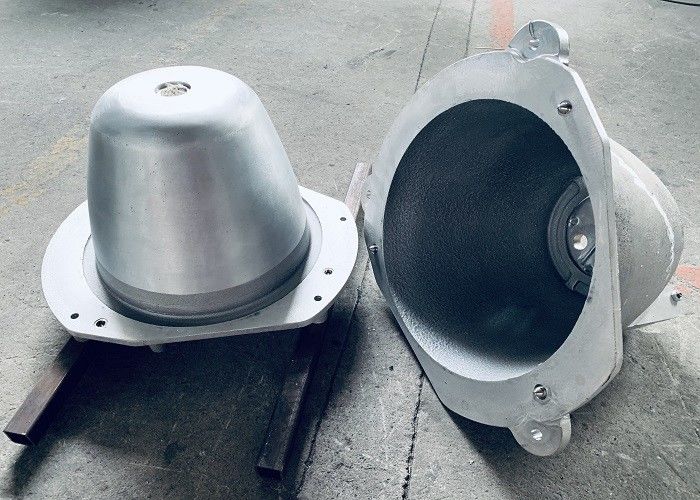

Irregular Texture Rotational Flower Pot Mould A356 Eco Friendly Acid Resistance
Product Details:
| Place of Origin: | TAICANG |
| Brand Name: | AP13 |
| Certification: | ISO9001:2015 |
| Model Number: | AP13 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Export wooden box |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Product Material: | Plastic | Shaping Mode: | Plastic Rotational Mold |
|---|---|---|---|
| Product: | Flower Pot Mold | Color: | Customized |
| Design Software: | UG,CAD | Mould Material: | Aluminum |
| Surface Treatment: | According To Your Requirements | Advantage: | Personalized |
| Feature: | Durable Eco-friendly | Shape: | Round Shape |
| Highlight: | Irregular Texture Flower Pot Mould,Rotational Flower Pot Mould,a356 plastic pot mould |
||
Product Description
Acorn Planter Handmake Irregular Texture Rotational Planter Mold
| Name:aluminum rotomolding die cast rotational mold | |||
| material | OEM service | mould | |
|
mould |
aluminium |
OEM manufacturer, custom-made as per your simple picutre and samples and giving professional engineering design for you | Professional engineer and help you design your own mould and product base on your idea or simple sketch |
|
product |
plastic |
OEM manufacturer, it is a good advice to have your own design and if your quantity is large, then mould fee is free | All kinds pastic including PE, LDPE, HDPE, LMDPE, UV.8-20 resistant, food grade material for plastic product |
The advantage of rotational mold
1. The cost of plastic rotational mold is low.
2. The edge of rotational molding products can reach more than 5mm.
3. variety of inserts can be placed to rotational mould.
4. The shape of rotational molding products can be very complex.
5. Rotational molding products can be produced fully closed.
6. Rotational molding products can be filled with foam material, to achieve thermal insulation.
7. No need to adjust the mold, the thickness of rotational molding products can be adjusted.
8. It's available to deal with a variety of surface patterns and produce products in various colors.
Genernal tools specifications:
1-Foam tooling model as casting patterns. Or, Block CNC machined tools available.
2-Aluminum castings with cast mounting posts. (Nominal 5/16” wall castings).
3-No or minimal porosity, guaranteed not to blow holes.
4-2” wide x 9/16” parting lines.
5-Tongue and groove parting lines, pins design also available.
6-Tongue is on the side that will mount to arm. (So plastic powder isn’t spilled into groove)

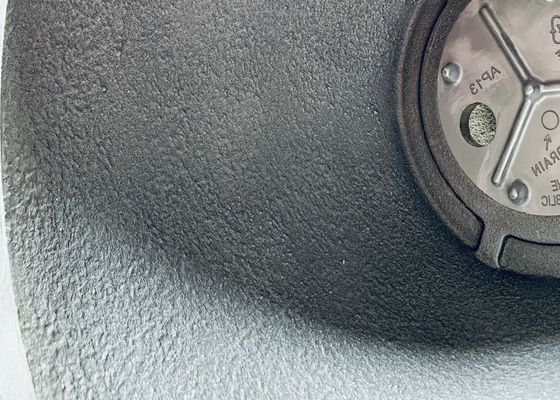

7-Two options for texture, 0.8mm/1.5mm shoot blasted. Mat or shiny available.
8-Fabricated frame, minimum (1-1/2” x 1-1/2” mild steel tubing)
9-Spring loaded mounting system available.
10-Heavy duty Clamps designing available.
11- Mild steel lifting hooks available.
12- treatment available.
13-Required tools shrinkage according customer.
