1500 Liters Water Tank Mould A356 6061t6 Casting Aluminum Material Rotation Molding
Product Details:
| Place of Origin: | TAICANG |
| Brand Name: | Custom designed |
| Certification: | ISO9001:2015 |
| Model Number: | Custom designed |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiate US DOLLARS |
| Packaging Details: | Export wooden box |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Product Name: | 1500L Water Tank Moulding Mould | Product Material: | Plastic |
|---|---|---|---|
| Serivce: | OEM/ODM/Customized/Design | Product Wall Thickness: | 4mm-8mm Customized |
| Mould Life: | 8000-10000 Parts | Work Flow: | Drawing Confirmed→mold Design→mold Making→manufacture |
| Highlight: | 1500l Water Tank Mould,a356 molding aluminium,6061t6 molding aluminium |
||
Product Description

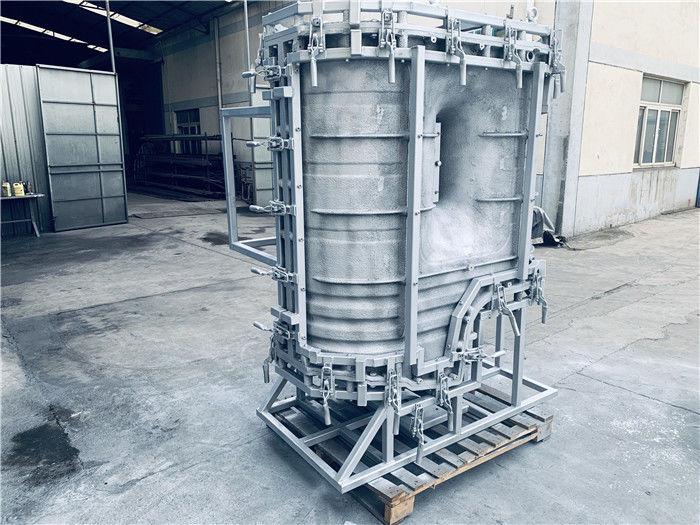

1500 Liters Water Tank A356 Casting Aluminum Material Made Rotational Moulding Mould
What is Rotational Molding?
Rotational moulding, known also as rotomolding or rotocasting, is a process for manufacturing hollow plastic products. For certain types of liquid vinyls, the term slush molding is also used. Rotational molding has particular advantages in terms of relatively low levels of residual stresses and inexpensive molds
Product Parameter
| Shaping type | Rotomolding mold |
| Mould material | Aluminum A356 6061T6 Block CNC |
| Product material | LLDPE/HDPE/LDPE/MDPE mixing powder or modified powder |
| Mould thickness | 8mm-12mm Customized |
| Product wall thickness | 4mm-8mm Customized |
| Mold making technology | Die casting and CNC |
| Design Software | CAD/UG etc. |
| Surface treatment | /Mirror/Sandblasting/Gloosy |
| Application | Kayak/canoe/cases/dispensers/park equipment/chair/frames |
| Work Flow | Drawing confirmed→mold design→mold making→manufacture |
Genernal tools specifications:
1- Foam tooling model as casting patterns. Or, Block CNC machined tools available.
2- Aluminum castings with cast mounting posts. (Nominal 5/16” wall castings).
3- No or minimal porosity, guaranteed not to blow holes.
4- 2” wide x 9/16” parting lines.
5- Tongue and groove parting lines, pins design also available.
6- Tongue is on the side that will mount to arm. (So plastic powder isn’t spilled into groove)
7- Two options for texture, 0.8mm/1.5mm shoot blasted. Mat or shiny available.
8- Fabricated frame, minimum (1-1/2” x 1-1/2” mild steel tubing)
9- Spring loaded mounting system available.
10- Heavy duty Clamps designing available.
11- Mild steel lifting hooks available.
12- treatment available.
13- Required tools shrinkage according customer.
Advantages
1). The cost of plastic rotational mould is low.
2). The edge of rotational moulding products can reach more than 5mm
3). variety of inserts can be placed to rotational mould.
4). The shape of rotational moulding products can be very complex
5). Rotational moulding products can be produced fully closed.
6). Rotational moulding products can be filled with foam material, to achieve thermal insulation.
7). No need to adjust the mould, the thickness of rotational moulding products can be adjusted.
8). It's available to deal with a variety of surface patterns and produce products in various colors.
SUZHOU ZHUOHE MOULD TECHNOLOGY
specialized in custom aluminium rotatioanl moulds, located in Taicang city of Jiangsu, which is very close to Shanghai, one hour from Hongqiao Airport, two hours from Shanghai Pudong International Airport.
Mr.Guangming Huang, the founder of Zhuohe, with over 28 years experience in rotational moulds filed, he joined in 2008 Beijing Olympic drum project, 2010 Shanghai Expo Madrid project, China military case projects. Now he is leading a team with over 15 years experience in building aluminum rotational moulds, well mastered in developing cleaning machine part moulds, auto & fuel tank moulds , icebox series moulds, kayak moulds, planter moulds and so on.
Company plant covers an area of 6000 square meters, with 6 CNC machines and 3 rotomoulding machines and other related equipments. The annual tooling production capacity about 300 sets and molding plastic parts over 1200 tons. Exported to all countries in the world.
We offering one-stop service, from mould design to finished plastic parts ,as long as a sample or an approved drawing is sent to us, you can expect a sample within lead time.
Good quality, Good price, Good service.
